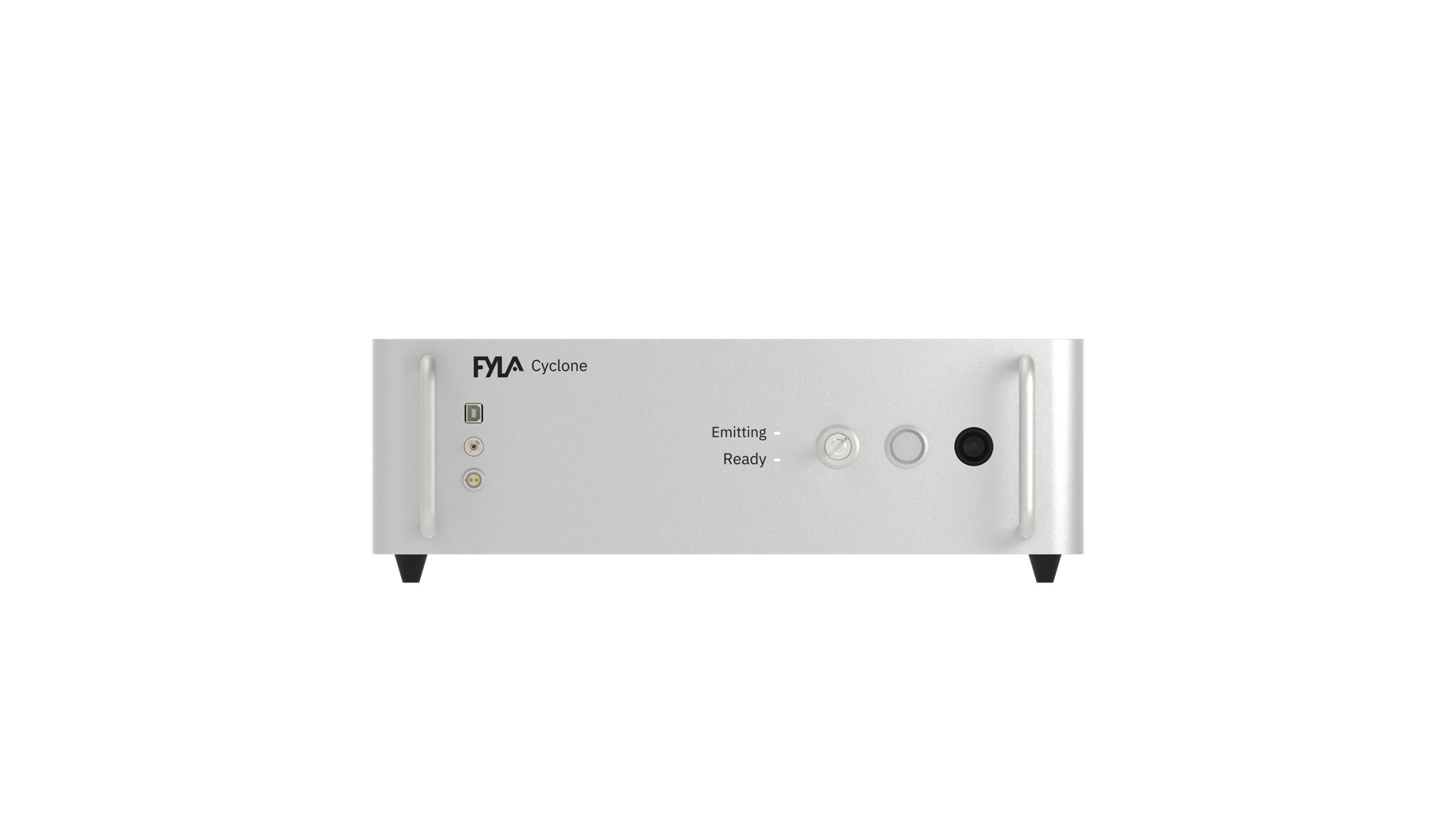

Cyclone
Broad Bandwidth Fiber Laser with Extremely Short Femtosecond Pulses
- Pulse Duration
- < 25 fs
- Peak Power
- > 75 kW
- Spectrum
- 950 – 1150 nm
The Cyclone is a broad bandwidth femtosecond fiber laser. It provides the shortest pulses on the market generated by a fiber laser, less than 25 fs pulses. Cyclone provides outstanding peak power (> 75 kW) over a wide spectrum of 950 – 1150 nm.
These parameters allow for increased brightness and reduced photodamage, making the Cyclone laser perfect for multiphoton microscopy, SHG microscopy, and a variety of other non-linear processing and spectroscopy applications.
It is a cost-effective, maintenance-free femtosecond fiber laser with best-in-class performance.
FYLA is ISO 9001:2015 certified, ensuring quality and consistency across the design, manufacturing, and commercialization of our technologies.
This product is a Class 4 laser. Appropriate safety measures according to such laser class should be taken in its installation and use.
Technical specifications
| Spectral Range | 950-1150 nm |
|---|---|
| Pulse Duration | < 25 fs* |
| Average Power | >150 mW* |
| Optical Peak Power | > 75 kW* |
| Repetition Rate | 80 MHz* |
| Power Stability | <0.5% over 3 h |
| Polarization | Unpolarized |
| Output Port | Free space |
| Optical Output | Collimated, single-mode across full spectrum |
| Beam Diameter | 2.4 mm (1/e2 at 1064 nm) |
| Spatial Mode Quality (M²) | <1.2 Fundamental Gaussian |
| Cooling | Thermoelectric cooler + air cooling |
| Dispersion Pre-Compensation | -4000 fs² to +2500 fs² |
| Power Requirements | 220/110V 50-60 Hz |
| Operating Temperature | 20 - 30 ºC |
| Dimensions | 436x560x151 mm (WxDxH) |
| Control Software | User-friendly |
