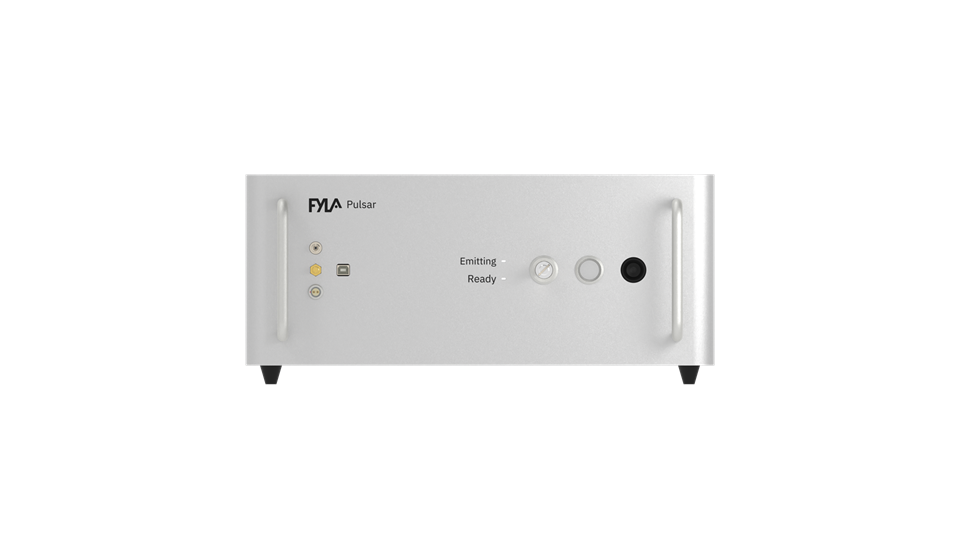

Pulsar
Extreme Pulse Control & Tunability
- Pulse Duration
- ≤ 300 fs
- Repetition Rate
- 1 Hz to 10 MHz
- Pulse Energy
- 10 pJ to 10 nJ
Pulsar is a complete laser system enabling pulse energy and repetition rate tunability, offering the user an unmatched level of versatility. With the independent adjustment of three key parameters: repetition rate (MHz to 1 Hz), pulse energy (10 pJ to 10 nJ), and pulse duration (≤ 300 fs).
Pulsar is an ideal laser for nonlinear optics applications, especially two-photon and three-photon absorption spectroscopy and microscopy.
FYLA is ISO 9001:2015 certified, ensuring quality and consistency across the design, manufacturing, and commercialization of our technologies.
a { text-decoration: none; color: #464feb; } tr th, tr td { border: 1px solid #e6e6e6; } tr th { background-color: #f5f5f5; }
This product is a Class 4 laser. Appropriate safety measures according to such laser class should be taken in its installation and use. Spectral profile and other detailed specs under request.
Technical specifications
| Central Wavelength | 1560 nm |
|---|---|
| Pulse Duration | ≤ 300 fs |
| Average Power | 100 mW @10 MHz |
| Repetition Rate | 10 MHz (Fundamental) |
| Power Stability | < 1 % (std. dev.) |
| Polarization | Linearly Polarised |
| Output Port | Free Space |
| Optical Output | Free Space |
| Synchronization / Connections | TTL (SMA) -USB - Interlock |
| Spatial Mode Quality (M 2 ) | < 1.2 |
| Half-angle Beam Divergence | 0,032º (at 1560 nm) |
| Cooling | Thermoelectric cooler + air cooling |
| Power Requirements | 220 V / 110V - 50/60 Hz |
| Operating Temperature | 20 - 30 ºC |
| Storage Temperature | 0 - 60 ºC |
| Dimensions | 500 x 800 x 300 (Main Laser Module) |
| Electromechanical Shutter Output | Rise-time: 1 ms , Sync. to Pulse train |
| Control Software | User-friendly |
